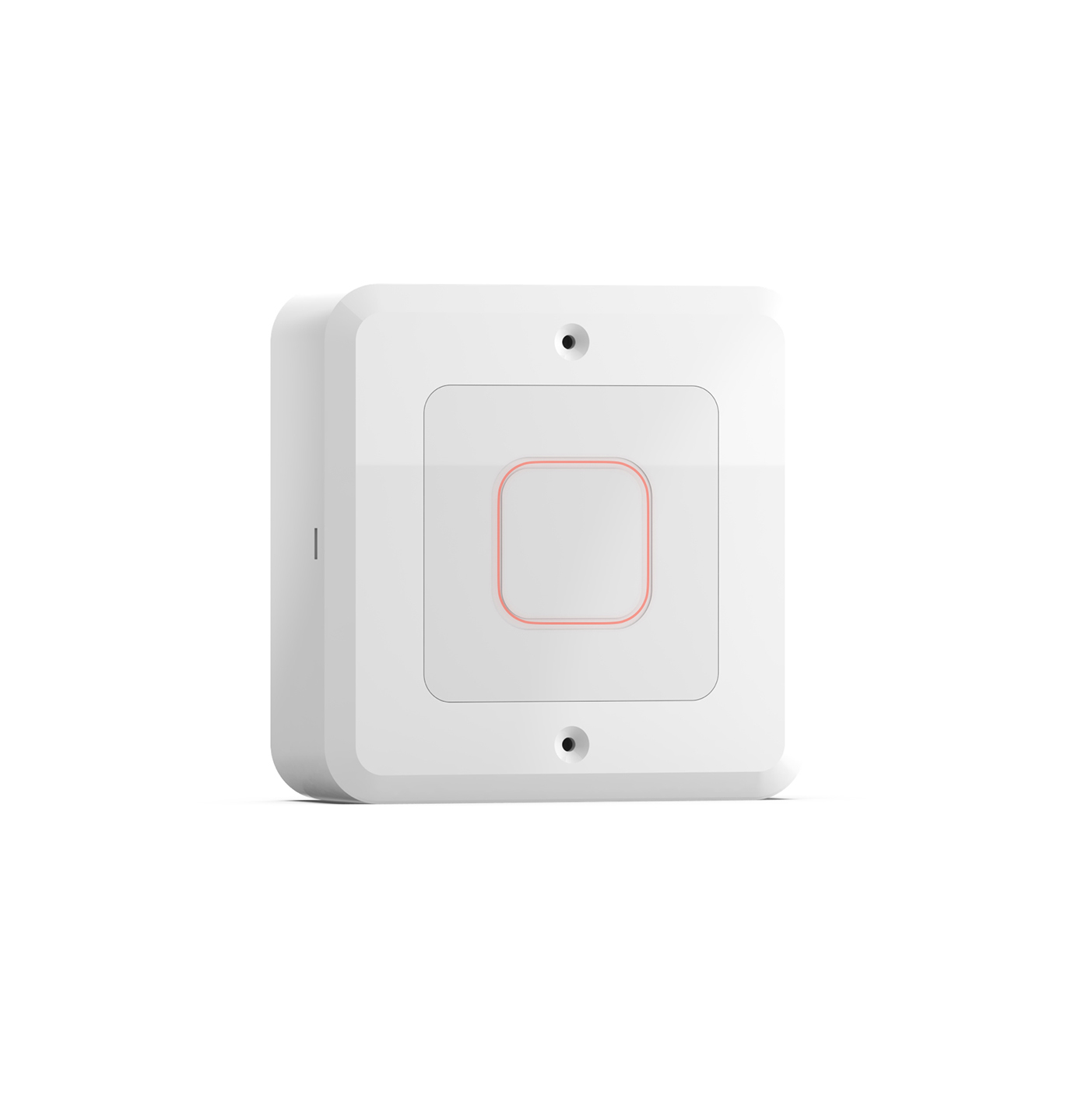

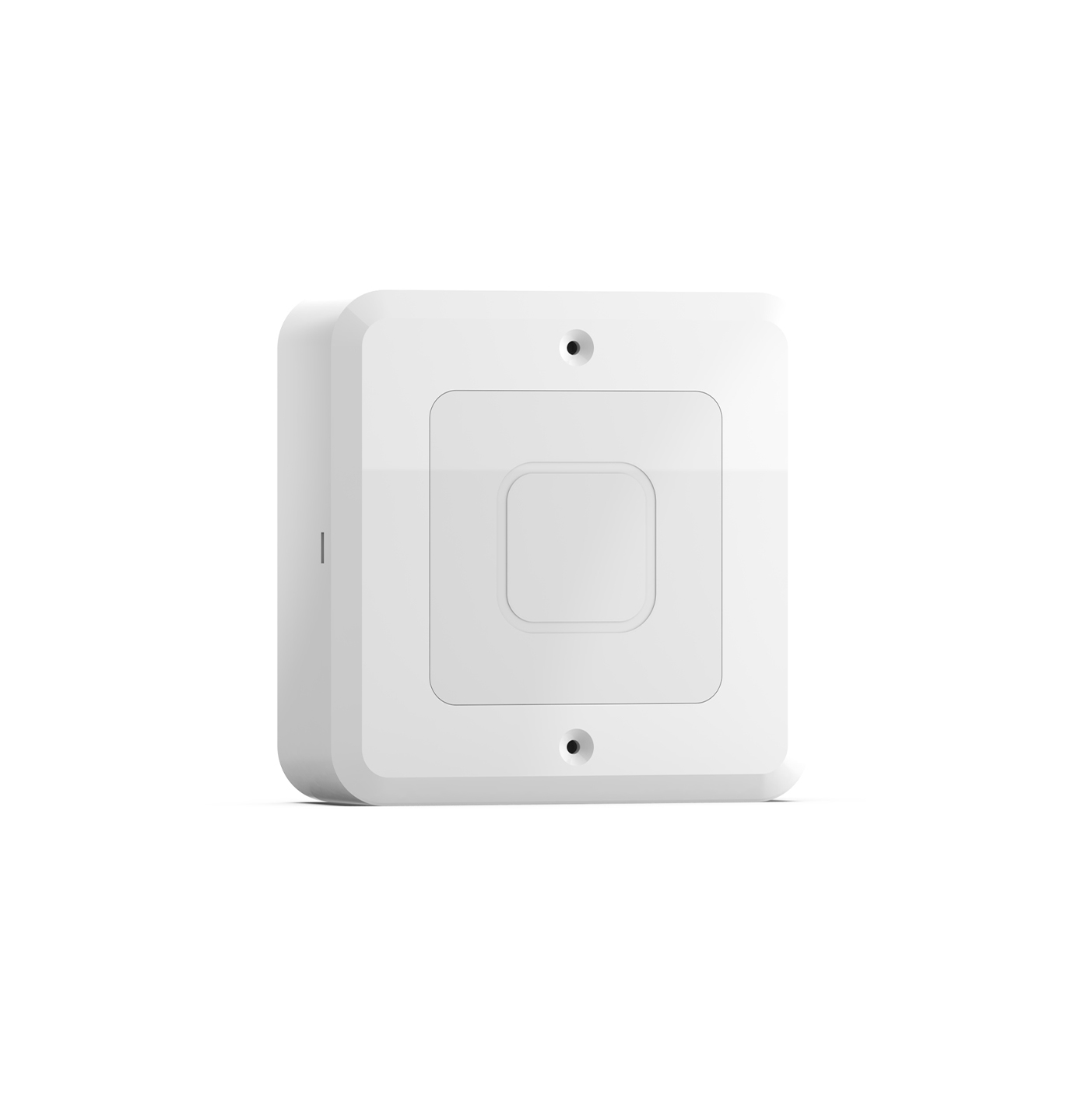

SAFETRON ResetButton
SAFETRON Button is a reset and alarm button with active tilbakerømning. The button can be used with the latest generation of SL620 and SL630 electric pressure locks, which have built-in re-entry logic, or together with the CU2 control unit, which is designed for 6000 series motor locks.
When the button is pressed, a potential-free closure is provided. A signal for, e.g., active tilbakerømning be connected to the button (NO), which makes it possible to configure the button to alarm by lighting up or flashing, as well as by means of an acoustic alarm via the built-in buzzer.
Properties
When the button is pressed, a potential-free closure is provided. A signal for, e.g., active tilbakerømning be connected to the button (NO), which makes it possible to configure the button to alarm by lighting up or flashing, as well as by means of an acoustic alarm via the built-in buzzer.
Properties
- Active tilbakerømning alarm input
- Light indicator (red light)
- Audible indication (buzzer)
- Reset via button
- Reset via time setting (5, 10, 15 minutes)
- 12-24 VDC
- Active tilbakerømning NO)
- Reset (NO) – Activated by pressing the button
